RS2 project architect Chuck Seen and this container home project was featured on a segment done by WYCC public television. The show is called "In the Loop" and looked at several commercial and residential shipping container structures being built in the Chicago area.
Container Fabrication -

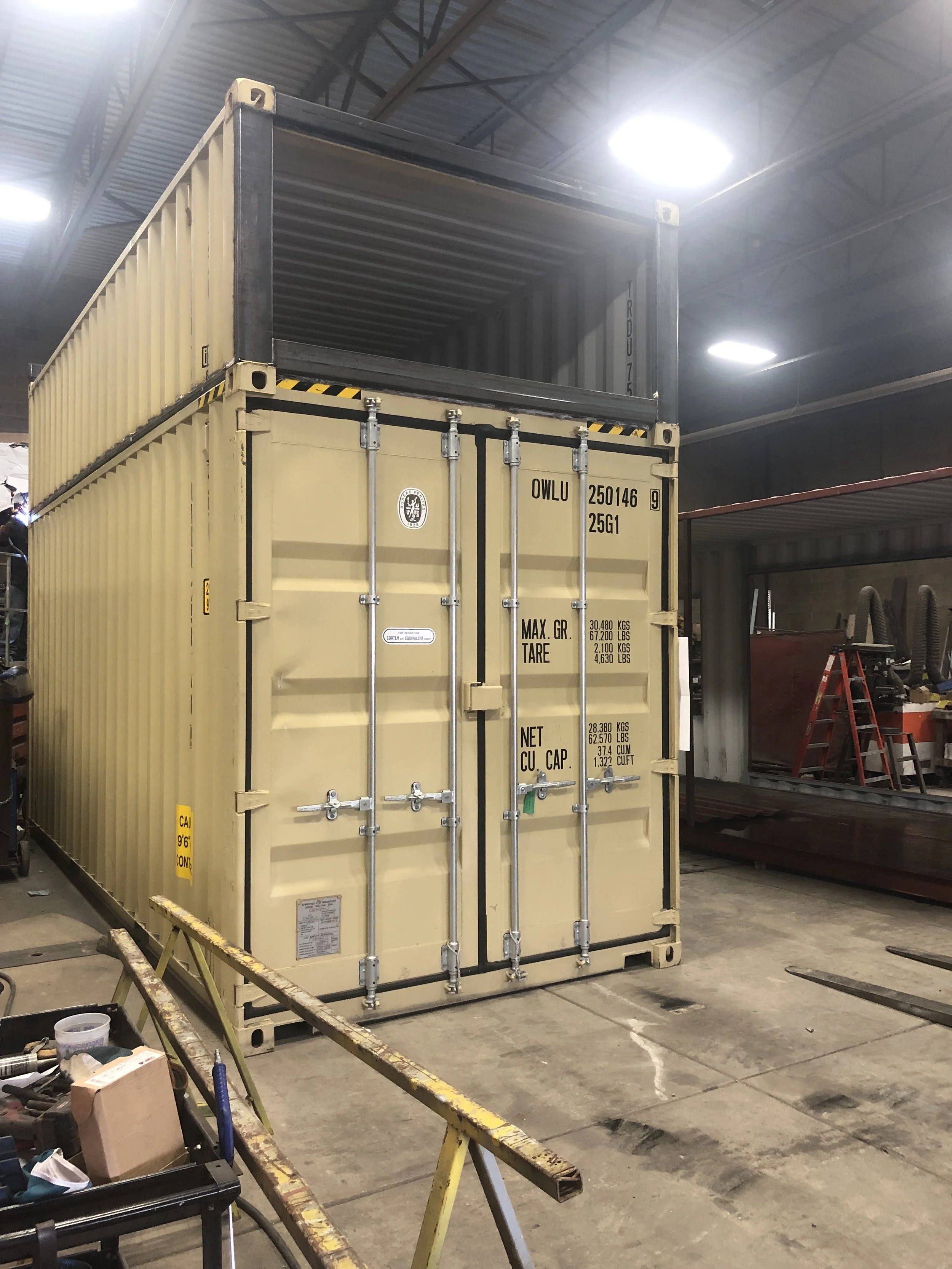

Containers are being fabricated by Advantage Structures Inc. of Chicago. When complete they will be painted and shipped to the site where they will be lifted in place on their permanent foundation. The stand alone doors are for the entrance to the courtyard, and the long panels pictured below are for the enclosure of the courtyard.

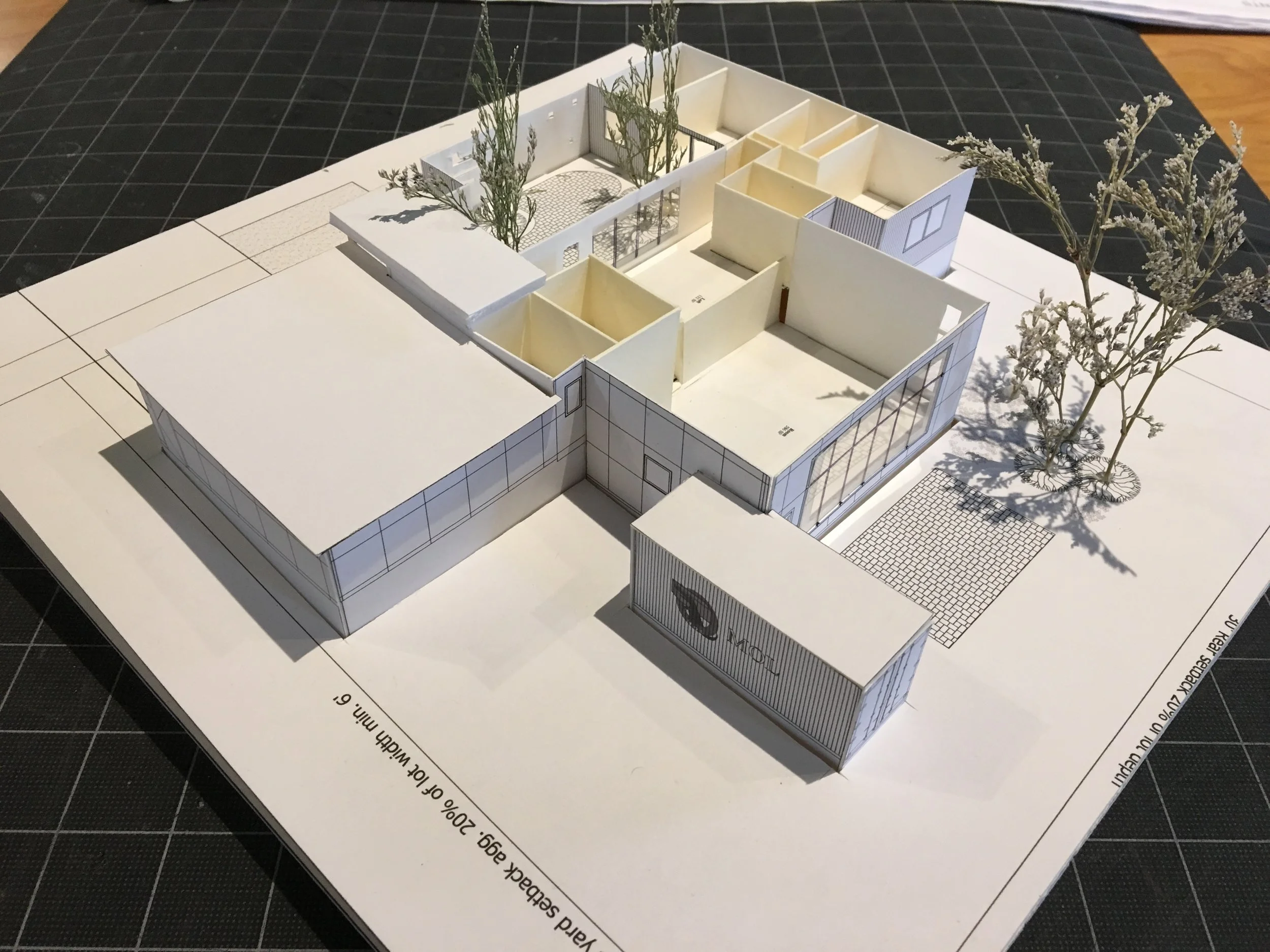

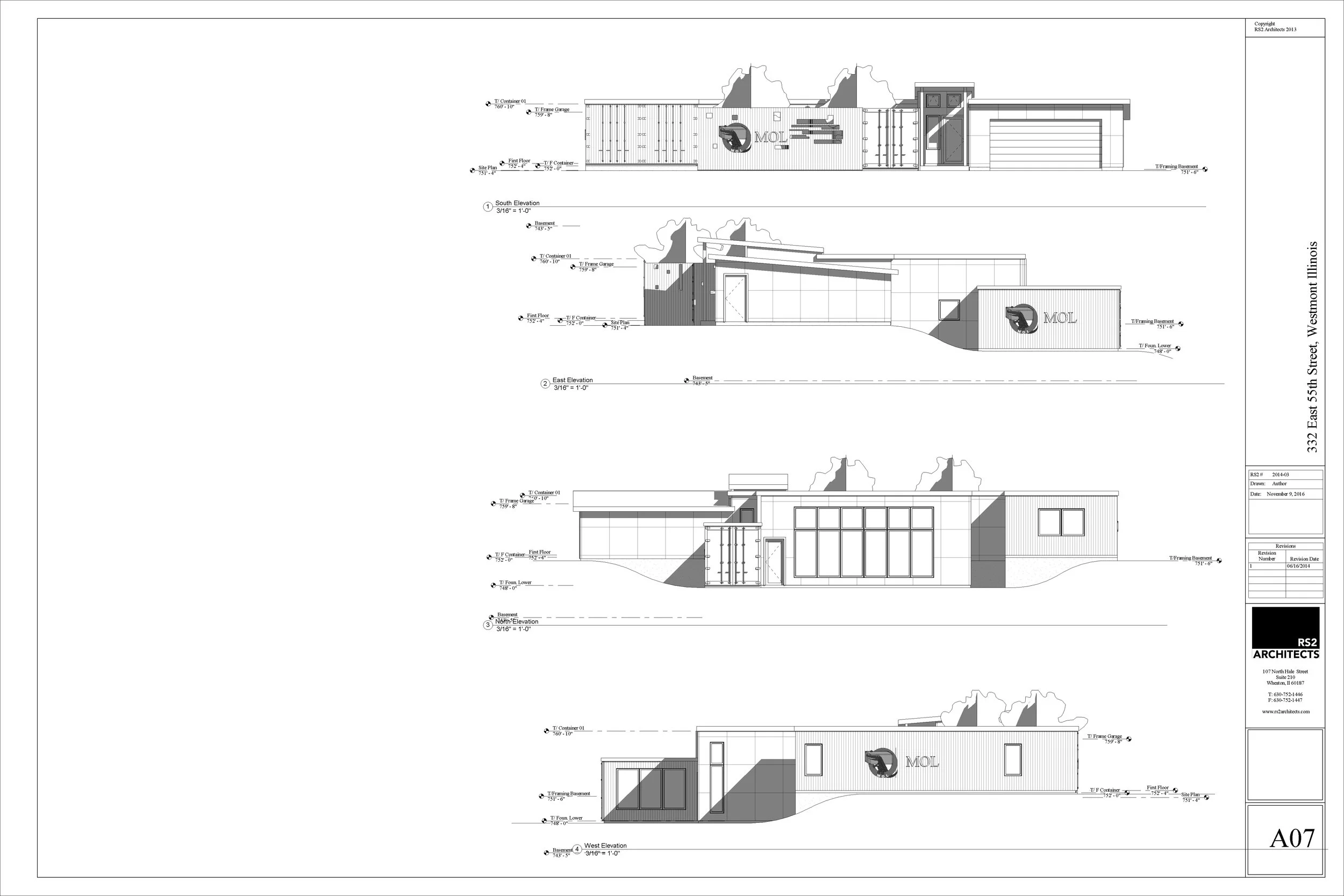

Conceptual Renderings and Study Models and Design Drawings

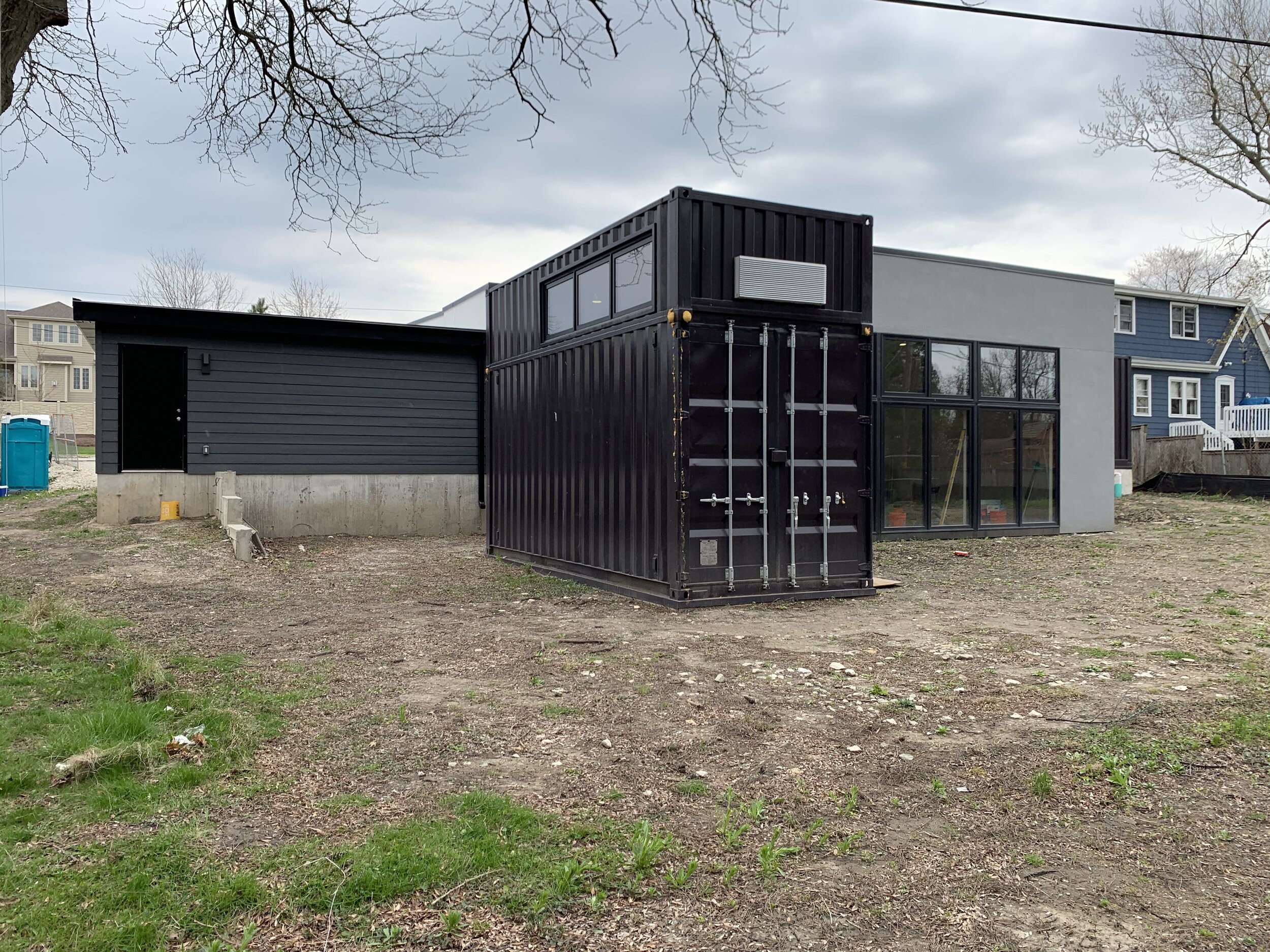

Project Description: This project is best characterized as a modern home that features a combination of recycled shipping containers and traditional construction techniques. The home will utilize 2 40' shipping containers that provide program space for two bedrooms. On the lower level a 20' container will accommodate a workout space. A part of a fourth container is used at the upper level to form a private courtyard, along with container doors that will open and provide access to the courtyard from the front of the house. The courtyard containers will have water jet cut openings that will animate the otherwise monolithic wall from the interior of the courtyard. Centered between the containers is a large volume of traditional construction, large windows provide view to the courtyard and to the open space towards the back of the site. The building site is located along a 55th street, in Westmont Illinois. Construction is expected in the summer of 2017.
Client: Private Client

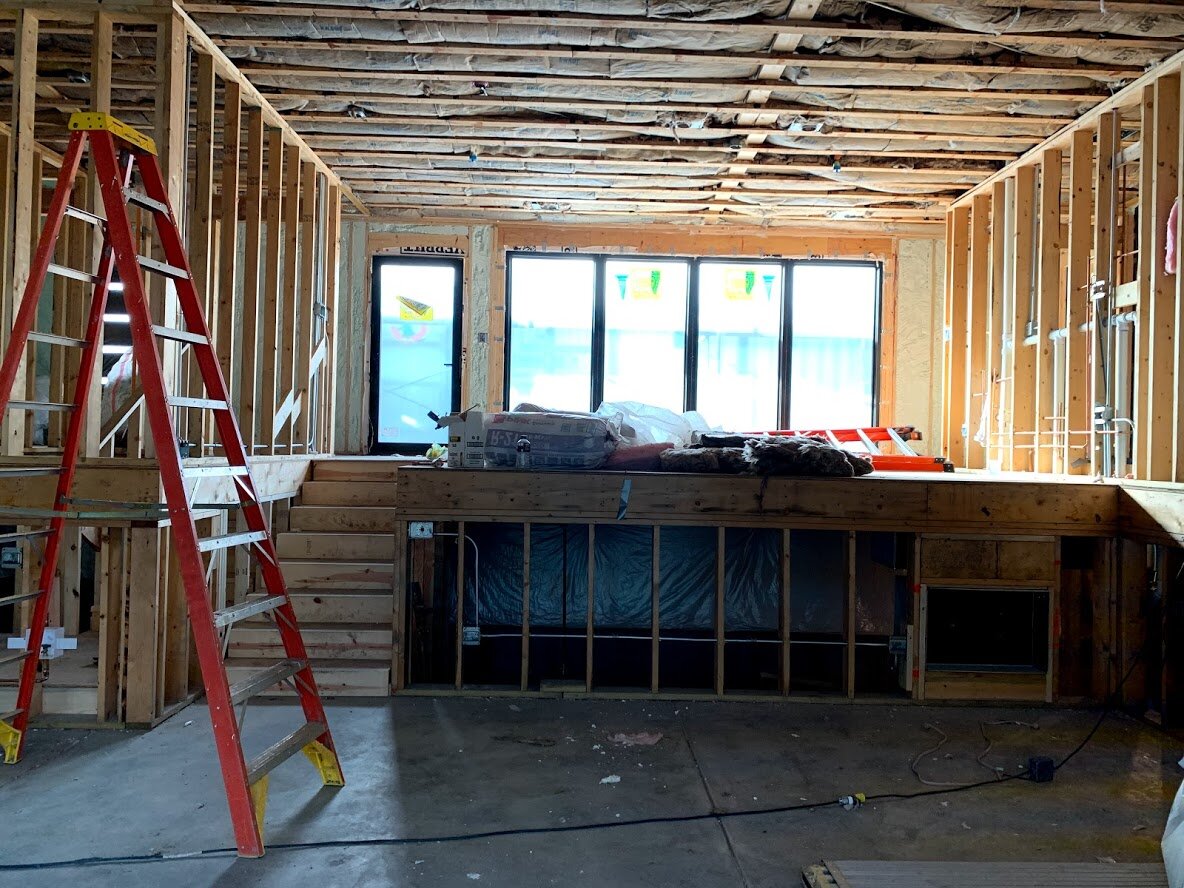

Status: Currently under construction, completion expected summer of 2019
Project Data: Recycled shipping containers, wood framing, Unilux windows
Area/Budget: 2,100 SF, $200 per SF
Project Team: Project Team: Chuck Seen RS2 Architects (architecture design and construction documents),
Nathan Mowry, Johnson Wilbur Adams Inc. (structural engineering). Dave Johnson, DJA Associates (Civil engineering)
